Writing a Parallel Application

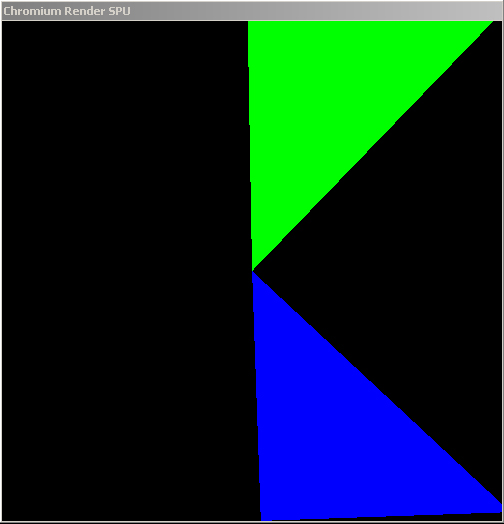

Each triangle is submitted by a separate client in a cluster-parallel program.

The Chromium server can serialize multiple incoming streams from a distributed OpenGL application. Here we will build a trivial parallel application using Chromium. The application that we will be considering is called psubmit, and can be found in the directory cr/progs/psumit.

Be Warned

The parallel submission portion of Chromium has been tested very little. In fact, the little amount of testing I've done on this part of the system indicates that something is leaking memory like a sieve, so the runs don't last very long. This is my absolute #1 top priority thing to fix after the alpha release, so if you care about this, stay tuned to the chromium-users mailing list.
The semantics of writing parallel applications haven't been completely thought through. For example, a sort-first parallel program from WireGL will port trivially to a sort-first parallel Chromium program, but if you wrote a sort-last SPU and wanted to run the same application, it might require (very minor) changes to some calls. I'm going to work on pushing this logic into the mothership so the same application will run sort-first or sort-last (assuming that it doesn't need the additional ordering provided by sort-first) without modification or recompilation.

The Basic Idea

Writing a parallel OpenGL application is pretty simple. You have a bunch of processes, each one of which is responsible for a portion of the model to be rendered. Each process renders its portion pretty much as if it were the only process in the world. The differences come up when you have requirements about the ordering of command execution.

OpenGL provides ordered semantics. That means that if function A is called after function B, the resulting image should look as if A happened before B. With parallel programs, it's no longer clear which function is getting called first. Therefore, if you aren't using the depth test (for example), and you draw two overlapping triangles in parallel, you don't know which one will appear on top. To get around this problem, Chromium implements the parallel API proposed by Igehy, Stoll and Hanrahan in SIGGRAPH '98. This API extends OpenGL to have barriers and semaphores, which are sufficient to express almost all ordering constraints that come up in graphics.

Let's take a look at the main function of psubmit.c in cr/progs/psubmit. The first thing this function does is determines how many of its peers exist, and which instance number (starting from 0) this particular main is running in. In psubmit, this is done with command line arguments, although more complex programs will probably need to do some sort of application-level communication or synchronization and would get this information from, say, MPI.

Once the rank and size of the program are determined, the following two lines appear:

crCreateContext();
crMakeCurrent();

These calls, declared in the header file "cr_applications.h", provide a mechanism to initialize the Chromium system without creating a window. This is particularly useful for parallel applications, since it doesn't really make sense to have a bunch of blank faked-out windows popping up all over the cluster. This also means that the client nodes in the cluster do not have to have a graphical environment running just to house a blank faked-out window.

The next thing that the application does is create a GL barrier:

glBarrierCreate( MASTER_BARRIER, size );

Notice that every node in the cluster will create this barrier. This is perfectly legal, as long as the "size" parameter matches up. MASTER_BARRIER is just an integer that "names" this barrier, much like an OpenGL display list or texture object (except that the namespace is shared between clients by default).

Next comes the main drawing loop. This application follows the basic format of all simple parallel OpenGL applications:

for (;;)
{
    if (rank == 0) glClear(...);
    glBarrierExec( MASTER_BARRIER );

    // Drawing code here

    glBarrierExec( MASTER_BARRIER );
    if (rank == 0) crSwapBuffers();
}

A few things to note about this drawing method:

Only rank 0 is doing a clear and a swap. This makes sense for sort-first applications, but is one of the ways in which this application would not work in a sort-last configuration. It is likely that this logic will move into the SPUs themselves (i.e., the SPU's will know whether or not to pay attention to a call to glClear) in the future.
glBarrierExec (also declared in cr_applications.h) is the call to enter a barrier.
The barrier following the clear ensures that the clear has happened before anyone starts drawing
The barrier preceding the swap ensures that everyone is finished drawing before the buffers are swapped
Barriers (and semaphores) do not block the application. They simply indicate ordering constraints to be obeyed by the server when switching contexts. Therefore, the clients do not have to stall, and can get ahead of the servers.
