Radiative Cooling in Hot Humid Climates

Aubrey Jaffer

Abstract

Passive radiative cooling of buildings has been an underachieving concept for decades. The few deployments have generally been in dry climates with low solar angles.
The greatest need for cooling is in the tropics. The high humidity endemic to many of these regions severely limits the passive cooling available per radiative area. To wrest temperature relief from humid climates, not just nocturnal cooling but solar irradiance, both direct and indirect, must be addressed.

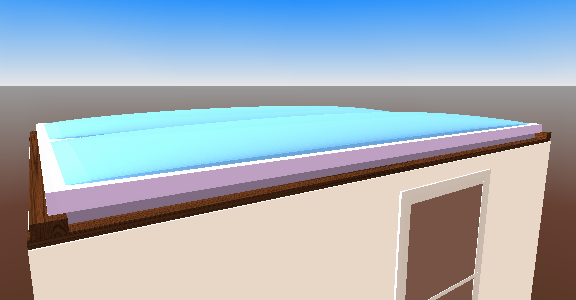

This investigation explores the extent to which thermal radiation can be used to cool buildings in the tropics. It concludes that inexpensive materials could be fabricated into roof panels providing passive cooling day and night in tropical locations with an unobstructed view of sky.

2006 Full Text (PDF)

March 2009

I have discovered reflector configurations which are significantly more efficient for radiative cooling than the corrugated reflectors. Read about these in Optics for Passive Radiative Cooling.

ThinkCycle: Open Collaborative Design

Project Status December 2007

In the year since cool.pdf ("Full Text" above) was last updated, I have obtained better data for most parts of the simulation model:

Dr. William D. Vacca of SOFIA-USRA NASA Ames Research Center has been kind enough to run ATRAN for both wet and dry equatorial atmospheres. With this data, my radiative-transfer calculations no longer need to smooth or interpolate atmospheric transparency, which was a weakness of my earlier computations.
Evaluating radiative-transfer at over two million uninterpolated samples of transparency data would take hours, much longer than with 14200 interpolated samples. Dan Stanger suggests a Monte-Carlo approach. Preliminary tests indicate that sub-sampling by a factor of 20 will keep the calculations within 1% of the exhaustive case.
It turns out that there is a TMY2 (typical meteorological year) for a tropical area: Guam (Pacific Islands). Its full year can be used instead of hacking Miami's summer data.
Using programs that extract measurements from digitized graphs, I developed better spectral refractive-index data for polyethylene in FreeSnell.
I fit quadratic functions to the graphs of convection given in the 1997 ASHRAE Handbook-Fundamentals. It is bizarre that such an important formula isn't widely available; but the ones I found on the web weren't suitable.

In order to properly evaluate this cooling method, a typical tropical dwelling should be simulated through Guam's typical meteorological year with various roofs, radiative and conventional. The ASHRAE model for indoor comfort has questionable applicability to primitive housing in the tropics. Instead, I will calculate the net cooling for an unoccupied dwelling; that number divided by 150.W gives the number of people who can occupy the dwelling comfortably at that time. Because the roof panels condense water, the division (of personal heat) between sensible heat and latent heat is unimportant.

With the convection formulas and radiative models developed, simulating the dwelling is straightforward, except for the floor. Tasks to complete are:

Create model (network of thermal masses and thermal conductances) for a tropical dwelling; also determine an air-exchange rate for the dwelling.
Find or create a simple thermal model of a dirt floor.
Simulate said model (with conventional roof) on existing software in order to validate operation of the new simulator.
Write thermal simulator driven from TMY2 data and radiative-transfer calculations.
Run simulations with conventional roof, radiative-cooling panel roof, reflective metal roof, and white painted roof.
It was suggested that warehouses might also benefit from radiative-cooling panel roofs; create model for a warehouse and run.

On the practical side, Luciano Cardoso has designed a clever system of folded metal with tabs for the (internal) side reflectors.

Bibliography

Head, A. K.
Method and means for producing refrigeration by selective radiation,
US patent 3,043,112 issued Jul. 10, 1962
Trombe, F.
Devices for Lowering the Temperature of a Body by Heat Radiation Therefrom,
US Patent 3,310,102 issued Mar. 21, 1967.
Silvestrini, V., Peraldo, M., Monza, E.
Covering Element Screening Off the Solar Radiation for the Applications in the Refrigeration by Radiation,
US Patent 4,323,619 issued Apr. 6, 1982.
Berdahl, Paul H.
Selective radiative cooling with MgO and/or LiF layers,
US patent 4,586,350 issued May 6, 1986.
Hull, John R.
Passive-solar directional-radiating cooling system,
US patent 4,624,113 issued Nov. 25, 1986.
Chang, D., Pollack, S, Shih, I., Jicha, A.
Selective Emissivity Coatings For Interior Temperature Reduction of an Enclosure,
US patent 5,405,680 issued Apr. 11, 1995.
Fan; J., Bachner, F.
Transparent heat-mirror,
US patent 4,337,990 issued July 6, 1982.
C. G. Granqvist and A. Hjortsberg.
Radiative cooling to low temperatures: General considerations and application to selectively emitting SiO films,
Journal of Applied Physics Vol 52(6) pp. 4205-4220. June 1981.
Mastai, Y., Diamant, Y., Aruna, S.T., and Zaban, A.
TiO₂ Nanocrystalline Pigmented Polyethylene Foils for Radiative Cooling Applications: Synthesis and Characterization,
Langmuir,17, 22, 7118, 7123, 2001, 10.1021/la010370g.
Martin, M.,
Radiative Cooling,
In Passive Cooling, edited by Jeffrey Cook.
MIT Press, 1989, pp. 138-196.
ISBN: 0262531712
Effects of the Passive Use of Nocturnal Radiative Cooling in Fresh Vegetable Cooling,
National Institute for Rural Engineering, Japan, 2000.
Parker, Danny.
Theoretical Evaluation of the NightCool Nocturnal Radiation Cooling Concept,
Submitted to: U.S. Department of Energy. FSEC-CR-1502-05. April 2005,
(Florida Solar Energy Center).
Tazawa M., Jin P., Tanemura S.
Thin film used to obtain a constant temperature lower than the ambient,
Thin Solid Films 281-282, 232-234. 1996.
Tazawa M.,, Jin P., Yoshimura K., Miki T. and Tanemura S.
New material design with V1-xWxO2 film for sky radiator to obtain temperature stability,
Solar Energy 64, 37. 1997.
S. Tanemura, M. Tazawa, P. Jing, T. Miki, K. Yoshimura, K. Igarashi, M. Ohishi, K. Shimono, M. Adachi,
Optical Properties and Radiative Cooling Power of White Paints,
ISES 1999 Solar World Congress
Steve Davidson,
SkyCool - extraordinary paint on a hot tin roof,
ECOS 2004, 12-12.
Air Mass 1.5 Global Spectrum,
Key Centre for Photovoltaic Engineering UNSW, 1994.
The University of Hawaii,
About Mauna Kea Observatories
Lord, Steven D.,
A new software tool for computing Earth's atmospheric transmission of near- and far-infrared radiation,
NASA Center for AeroSpace Information (CASI) NASA-TM-103957, 1992.
Pankove, J. I.
Optical Processes in Semiconductors,
New York: Dover Publication, 1971.
ISBN 0486602753
Horn, Berthold K. P.
The Facts of Light,
Working Paper 97, MIT Artificial Intelligence Laboratory, 1975.
Joseph B. Murdoch,
Illumination Engineering: from Edison's lamp to the Laser,
Macmillan Publishing Company, 1985.
Heavens, O. S.
Optical Properties of Thin Solid Films,
Dover Publications, 1991.
ISBN: 0486669246
ASHRAE,
1997 ASHRAE Handbook-Fundamentals (SI),
American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc.,
Atlanta, US, 1997.
M. Kenworthy.
Airmass due to the finite radius of the Earth,
22nd Jan 2002.
Long-Wavelength Pass Filters,
University of Reading,
Infrared Multilayer Laboratory,
Reading Berkshire, UK, 2004.
Jaffer, Aubrey.
FreeSnell Thin-Film Optical Simulator,
Version 1b7, February 2008.
Bhattacharya, Shaoni.
European heatwave caused 35,000 deaths,
NewScientist.com 10 October 2003.
Solar Still Basics,
SolAqua, El Paso, Texas.
Marion, W., Urban K.,
User's Manual for TMY2s, Typical Meteorological Years,
National Renewable Energy Laboratory, June 1995.
Tsilingiris, P. T.,
Comparative evaluation of the infrared transmission of polymer films
Energy Conversion and Management, Volume 44, Issue 18, November 2003, Pages 2839-2856
Alwitt, Robert S.,
Anodizing
in Electrochemistry Encyclopedia, Boundary Technologies, Inc., 2002.
Gail Schiller Brager and Richard de Dear,
A Standard for Natural Ventilation,
ASHRAE Journal, October 2000.
Bjarne W. Olesen and Gail S. Brager,
A Better Way to Predict Comfort,
ASHRAE Journal, August 2004.
Reitan, C.,
Surface Dew Point and Water Vapor Aloft,
Journal of Applied Meteorology: Vol. 2, No. 6, pp. 776-779, 1963.
Smith, W.L.,
Note on the Relationship Between Total Precipitable Water and Surface Dew Point,
Journal of Applied Meteorology: Vol. 5 No. 5, pp 726-727, 1966.
Viswanadham, Point,
The Relationship between Total Precipitable Water and Surface Dew Point,
Journal of Applied Meteorology: Vol. 20, No. 1, pp. 3-8, 1981.
Raymond, William H.,
Estimating Moisture Profiles Using a Modified Power Law,
Journal of Applied Meteorology: Vol. 39, No. 7, pp. 1059-1070, 2000.
T. Engelhard, E.D. Jones, I. Viney, Y. Mastai, G. Hodes,
Deposition of tellurium Films by decomposition of electrochemically generated H₂Te: application to radiative cooling devices,
Thin Solid Films 370 (2000) 101.
K.D. Dobsona,1, G. Hodesa, Y. Mastaib,
Thin semiconductor films for radiative cooling applications,
Solar Energy Materials & Solar Cells 80 (2003) 283-296.
J. M. Gordon, A. Rabl,
Nonimaging Compound Parabolic Concentrator-Type Reflectors With Variable Extreme Direction,
Applied Optics, Vol. 31, Issue 34, pp. 7332-7338.
